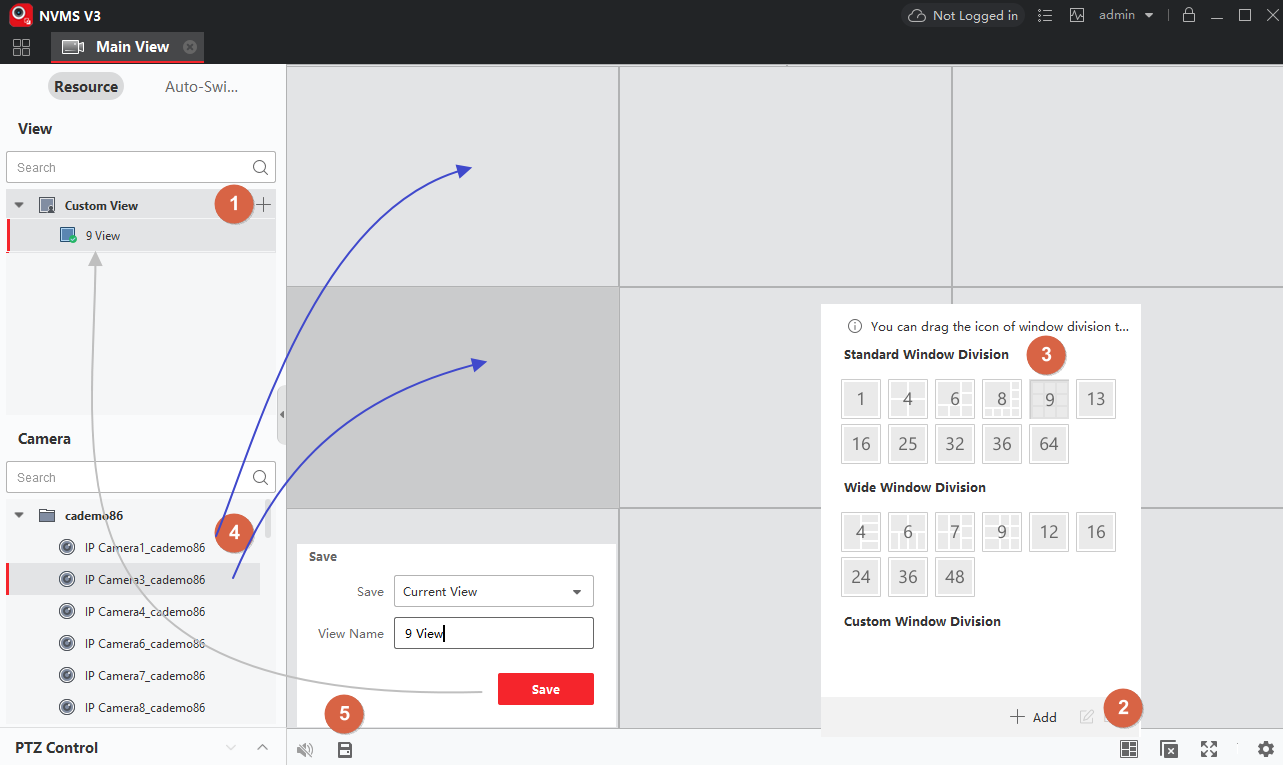

Create a custom view
- click + nearby the Custom view, to create a new view.
- Click the window division button.
- Select the layout you want.
- Drag each camera you like to view into each window.
(You may drag different DVR camera into here, to create a merge view) - Click Disk icon, give a view name and Save it.
Auto-Switch
There are two Auto-Switch functions.
- Multi-screen Auto-switch display All DVR/NVR multiple camera display, or more...
- Single-screen Auto-Switch display 1 camera only and switch within the DVR/NVR.

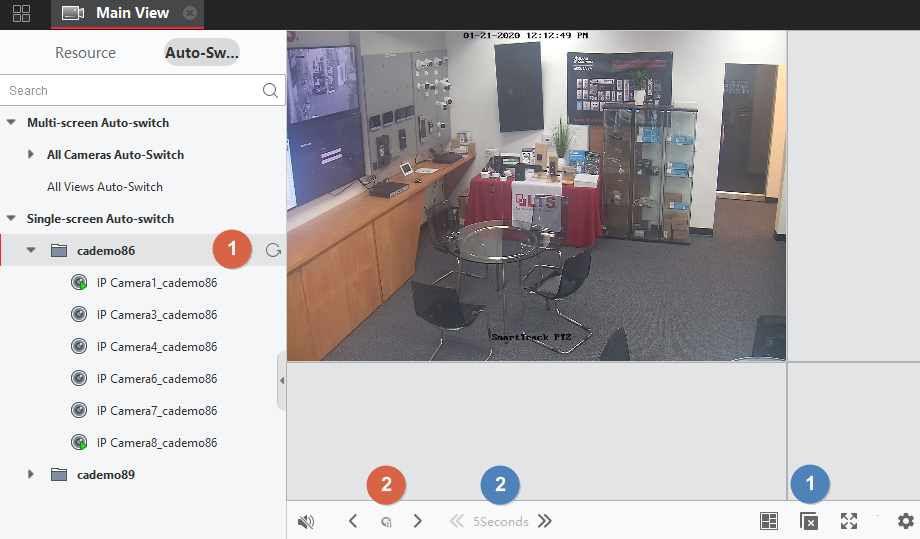

Single-Screen Auto-Switch
How to Play it? (Red dot)
- click switch icon. Then, the camera should display automatically.
- click Pause icon to pause it.
How to change duration? (Blue dot)
- You need to Stop the auto-switch view first.
- Then change the duration (5sec - 5mins)
- click the Switch button (Red dot 1) to start again.
Multiple-Screen Auto-switch contain three features.
- All Camera Auto-Switch display all the DVR/NVR camera and switch it.

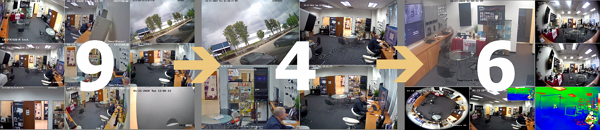

- All Views Auto-Switch display all custom view (must have 2 custom view at least) and switch it.
- Add View Group display limited custom view (2 view minimal) and switch it

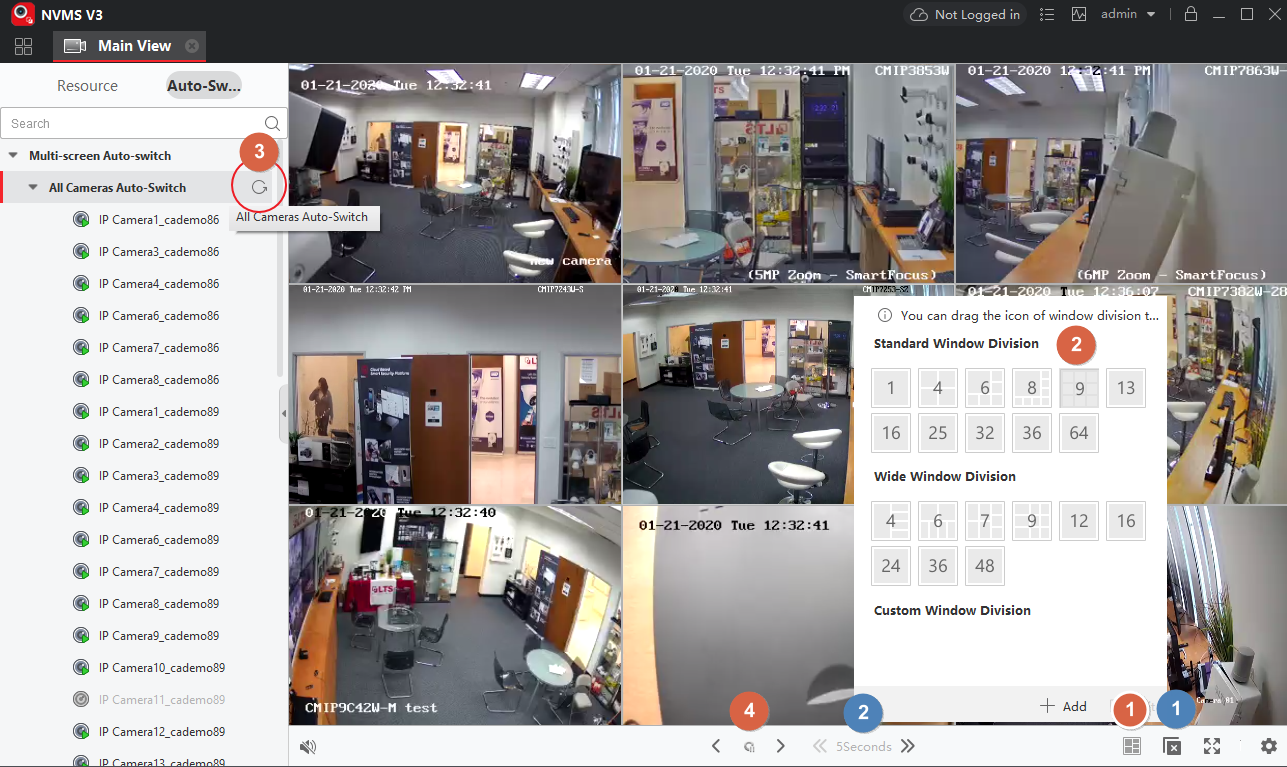

All Camera Auto-Switch (Red dot)
- Click the window division button.
- Define the window division first.
- Click Switch icon.
- Click Pause/Resume icon to pause it.
Change Duration (Blue dot).
1. Stop the View first. 2. change Duration (5sec-5mins) 3. Play again (Red #3)
All Views Auto-Switch (will display all custom view and switch it)
You need to pre-define several Custom View first (minimal 2). For example,
Go to Auto-Switch Tab

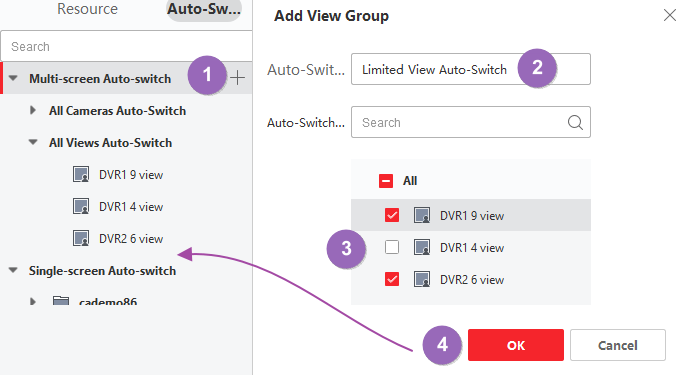

Add View Group (Aka Limited View Auto-Switch)
- click + (Add View Group)
- Give a name. (For example: Limited View Auto-Switch)
- Select the custom view group you like to show.
- OK
